Adventures in FreeBSD Bringup on an RK3588 (Part 2)
Last week I started the journey of FreeBSD bringup on an RK3588 board. As a quick recap, the vendor U-Boot image that came with the board was pretty old and didn't have support for UEFI. Given that FreeBSD's existing RockPro image has an EFI image which I'd like to be able to "just boot," I grabbed the mainline Armbian "edge" image for the board and was able to get fairly deep in the kernel process with just this.
Of course, there were warnings galore, and given the near-total lack of clocks, it stalled during the process of probing OHCI.
Pruning the OHCI node
The next step was actually suggested by a discussion with ChatGPT; don't hate 😅 Since the OHCI device was causing the stall, maybe we could just disable it and see what the next blocker is?
This turned out to be relatively straightforward. To access U-Boot, you need to have pretty fast reflexes. The prompt to abort automatic boot and go to the console is only up for a second or 2. And you have to press any key besides enter!
First, we need to set up our own FDT table. FDT stands for Flat Device Tree, and U-Boot lets us manipulate this directly in memory before handing off to the OS bootloader. For more details on these commands, check out the U-Boot docs.
=> fdt move ${fdtcontroladdr} ${fdt_addr_r} 100000
=> fdt addr ${fdt_addr_r}
From our last boot log, we could see the address of failing OHCI controller.
ohci0: <Generic OHCI Controller> mem 0xfc8c0000-0xfc8fffff irq 14 on ofwbus0
To confirm that we're tweaking the right device,
we can use fdt print.
We should get the OHCI controller details.
=> fdt print /usb@fc8c0000
usb@fc8c0000 {
compatible = "rockchip,rk3588-ohci", "generic-ohci";
reg = <0x00000000 0xfc8c0000 0x00000000 0x00040000>;
interrupts = <0x00000000 0x000000db 0x00000004 0x00000000>;
clocks = <0x00000021 0x00000190 0x00000021 0x00000191 0x00000021 0x000002c0 0x0000002a>;
phys = <0x0000002b>;
phy-names = "usb";
power-domains = <0x00000022 0x0000001f>;
status = "okay";
phandle = <0x00000169>;
};
Disabling this is pretty simple:
=> fdt set /usb@fc8c0000 status "disabled"
And with that, we're off to boot with the modified device tree like so:
=> mmc dev 1
=> fatload mmc 1:1 ${kernel_addr_r} /EFI/BOOT/bootaa64.efi
=> bootefi ${kernel_addr_r} ${fdt_addr_r}
Getting a Minimal Root Filesystem
This gets all the way through kernel boot! Unfortunately, we have no storage. The SD reader is legible to U-Boot, but not to FreeBSD. USB isn't working either.
So, we don't have any storage, and of course we don't have network yet.
But we DO have access to the SD card during the early boot process,
and FreeBSD's generic kernel includes the md driver which is capable of loading an image!
First I'll describe the high-level edits we'll make to the base image. I'll include scripts at the end which covers the mechanical details, and focus on high-level explanations first.
Configuring /etc/fstab
First, we need to edit the fstab file.
The default primary UFS partition doesn't work for our current setup yet,
so I've replaced the root filesystem with /dev/md0.
# RAM-root bring-up
/dev/md0 / ufs rw 0 0
tmpfs /tmp tmpfs rw,mode=1777 0 0
Create a Minimal Rescue Root Image
Next, we need to create a minimal image. It has to be minimal because there's a size limit to how much we can load via this method. I think the value is ~1GiB based on this source code.
My first attempt ran afoul of this limit. After taking a long time (20 minutes or so?) of copying a ~3GiB image from the SD card into RAM, it just hung with no clear indication of what went wrong 🥴
To solve this, I opted for a minimal root image from /rescue.
I could have created a more custom minimal base image (and I probably will later),
but this was the easy path to get something up.
I created an image by basically copying the contents of /rescue to a temp directory,
along with /etc/fstab from the CURRENT RockPro64 image.
I also added a basic skeleton for other mount points (empty directories).
Then I used makefs to turn the directory tree into a UFS2 disk image
which md can mount later.
(The script at the end has the details.)
Then, I copied the rescue image into the original image's filesystem
under /boot/mfsroot.
Configure /boot/loader.conf
Then we need to tell loader.conf about the image.
This is fairly straightforward.
The mfsroot isn't special; it's a name according to a convention
that's understood by the loader.
Basically it creates an image named mfsroot,
and configures the loader to boot from it,
in single-user mode (baby steps).
# Bring-up: preload root filesystem into RAM
mfsroot_load= "YES"
mfsroot_type= "mfs_root"
mfsroot_name= "/boot/mfsroot"
vfs.root.mountfrom= "ufs:/dev/md0"
vfs.root.mountfrom.options= "rw"
# Single-user mode; verbose boot
boot_single= "YES"
boot_verbose= "YES"Recap
So, to recap where we are,
we've started with a FreeBSD-CURRENT image,
derived a minimal rescue image from that,
embedded the rescue image in /boot,
and told the loader to use it as the root filesystem as md device.
The image is loaded directly into RAM by the EFI boot process, compensating for the fact that we don't have SD, USB, or NVMe working yet under FreeBSD. The EFI boot process loads the kernel and root image, kicks off the kernel boot (with a modified device tree), and the FreeBSD kernel loads the rescue root FS.
Loading a Full Base System
The rescue system is functional (it actually has 147 binaries at the time of this writing, which is not nothing!),
but it's a bit bare.
For example, there is no C compiler and no manpages.
We don't even have uname yet!
You may recall that we started from a full SD card image, which is around 3GiB uncompressed.
My first thought was to just include that (recursively-ish) as another "fullroot" image to be loaded by md.
This runs into the 1GB limit though.
But, the rescue system is more featureful than you might imagine (especially if coming from another OS).
It includes utilities like xz, which will let us copy a compressed image to RAM during boot,
and then expand it at our leisure once the system has booted.
This turns out to be a good idea anyways, even without the 1GiB limit. SD cards are slow compared to the storage I'm used to.
This took a fair bit of fiddling to get working, but you can see the process in the scripts at the end.
Full Boot Log

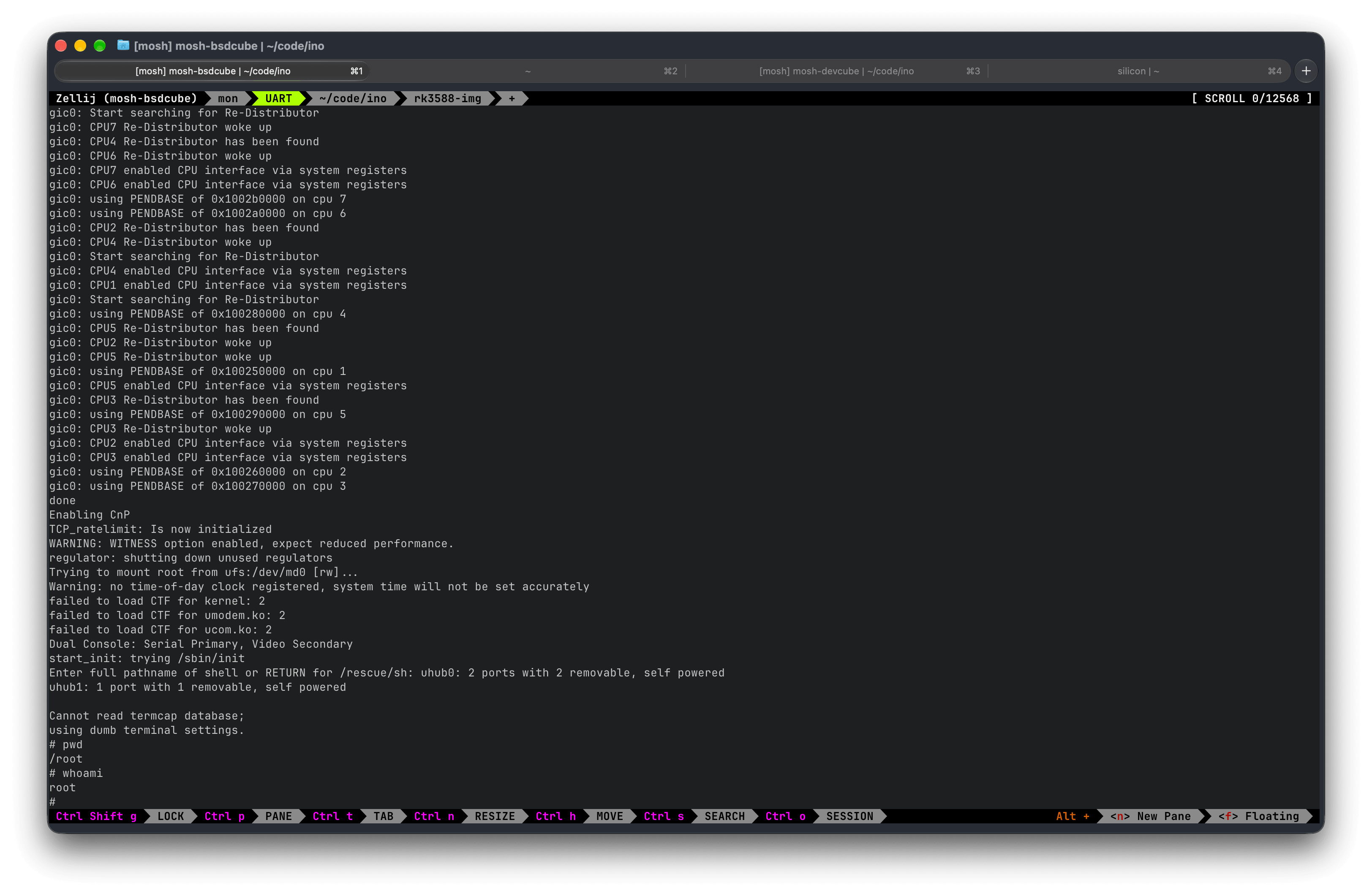

And with that, we have a full base system with a root shell! We still have a lot of work left in terms of hardware support, and it's still single-user mode, but the system is usable over the serial console.
I've included the full boot log below for reference.
Full boot log
